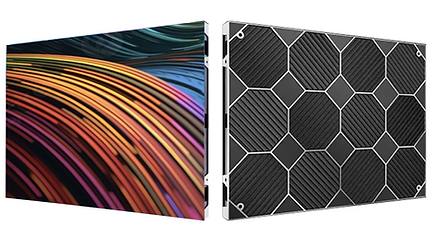

LUCID PRO 1.9
1.9mm indoor panel
A MAGNIFICENT VIEW
VISUAL PERFORMANCE
With over 65,000 individual LEDs per panel, the LUCID PRO 1.9 can supply a refined and detailed image at closer viewing distances. A minimum 7,680≥ Hz refresh rate ensures flicker-free performance and excellent visibility on cameras. A 22-bit grayscale with HDR powered by a NovaStar A10S PRO receiving card provides advanced image processing for smooth gradients and vivid, high-contrast imagery in person and on-camera.
THE FULL SPECTRUM
PANEL SPECIFICATIONS
OPTICAL
Pixel Pitch: 1.9mm
LED Type: NATIONSTAR SMD GOB
Pixel Density: 256x256
Brightness: ≥800 NITS
Viewing Angle: 160° H | 160° V
Refresh Rate: 7,680≥ Hz
Grayscale: 22 Bit +/-
CONTROL / POWER
Power Connection: PowerCON IN / THRU
Signal Connection: EtherCON IN / THRU
Voltage: 120V-240V AC
Average Power: 68 Watts / per panel
Max Power: 170 Watts / per panel
Average Power Calculations:
120V/68W = .57 AMP / per panel
Max Power Calculations:
120V/170W = 1.41 AMP / per panel
PHYSICAL
Material: Die-Cast Aluminum
Dimensions: 19.68" x 19.68" x 2.5″(500x500x90mm)
Weight: 11lbs
Serviceability: Front
Control System: NovaStar
Receiving Card: NovaStar A10S PRO
Frame Rate: 60hz
PROTECTION
Certifications: ETL, FCC, CE, ROHS, UL
Warranty: 3 Year Manufacturer Defects
Support: 3 Years Included
